IFYIL Wood Boiler Toros Plus Red

PRODUCT WITH SOLID FUEL HEATER:
– Eco-friendly wood stove.
– Definitely do not fire the stove while in the lack of water.
– Electric consumption 45 watts.
– The room shall not be less than 10sqm.
– A voltage regulator is required in areas with voltage irregularities.
– Less than half water level once a week should be checked.
– No downsize to be used, always rising.
– Damage caused by calcified water is not covered by the warranty.
– Quality of drinking water is recommended.
– Oven temperature cannot be adjusted
– Tilting grill cleaning system
– Cooking possibility on the top plate
– Wood, coal and briquette burning feature
– Safety valve safety device
– Semi-automatic combustion air control
​- Manual secondary air combustion control

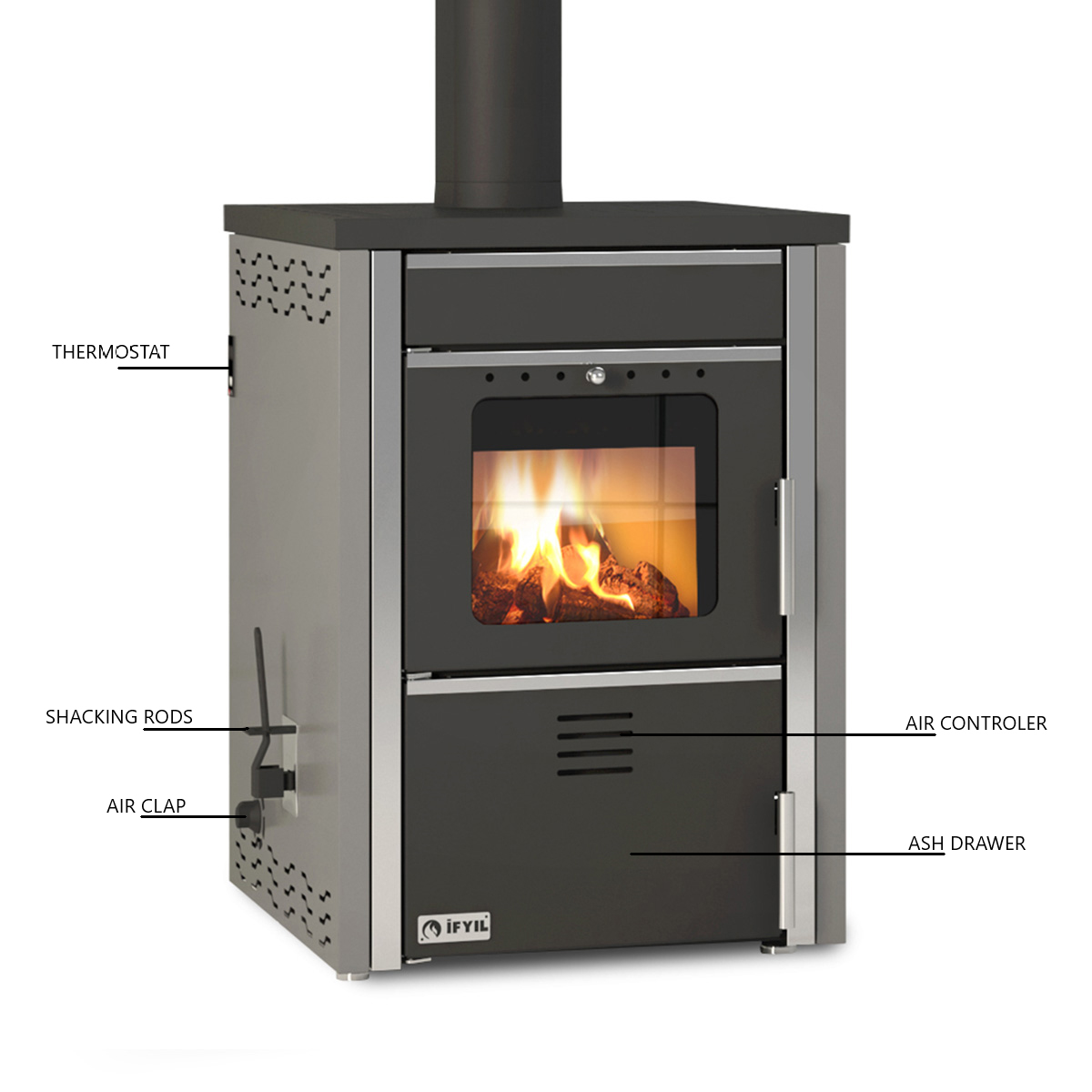

Thermostat:
– Thermostat to adjust the operating temperature.
– In case of error (cable connect) a safety was created as the pump will run continuously.

Air-clap:
– Air-clap works at 40° – 80°c
based on the determined temperature at which the stove will go to sleep mode when reached.
– When the temperature falls below the value required, the stove will start burning automatically.

Shaking rods:
– Horizontal —- discharged.

Pump warning:
– Solid green light → normal.
– Flashing green light → air discharged.
– Flashing green or red → not usual stop working.
– Flashing red → pump stop (to change pump).
– No light → no power.
– Press shut down, not lug off.

P.s: For less than 0°c antifreeze should be used.
