Natural materials for sustainable constructions.

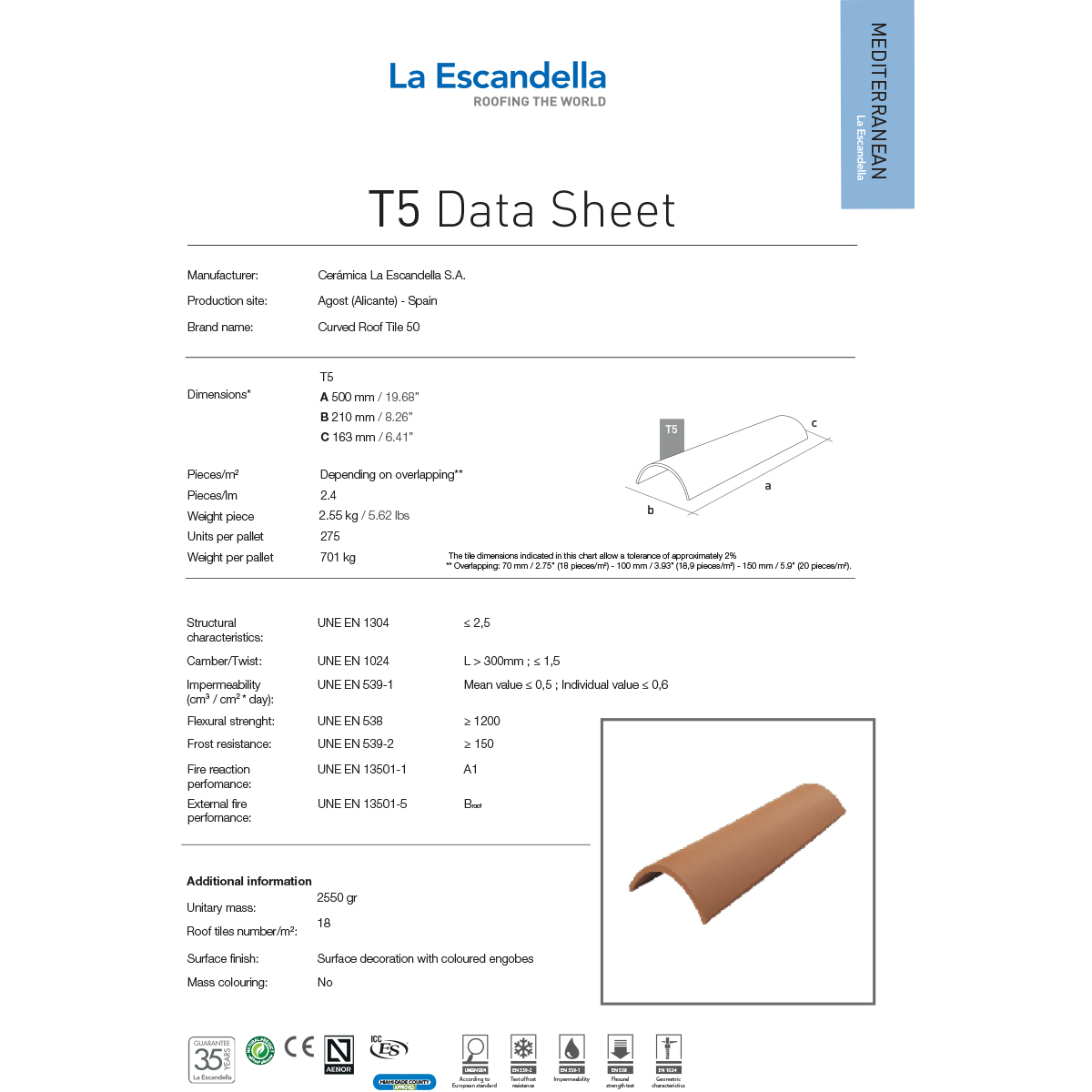

Dimensions: Length: 500 mm / 19.68″ x Width: 210 mm / 8.26″ x Thickness: 163 mm / 6.42″
Weight per piece: 2.55 kg / 5.62 lbs
Weight per pallet: 701 kg / 1545.4 lbs
Units per pallet: 275
Pieces per m2 / sq:**Depending on overlapping
Pieces per lm: 2.4
*The Tile dimensions indicated, allow a tolerance of approximately 2%.
**Overlapping: 70 mm/2.75″ (18 pieces / m2); 100 mm/3.93″ (18.9 pieces / m2); 150 mm/5.9″ (20 pieces / m2).
* Price per piece
No images found.

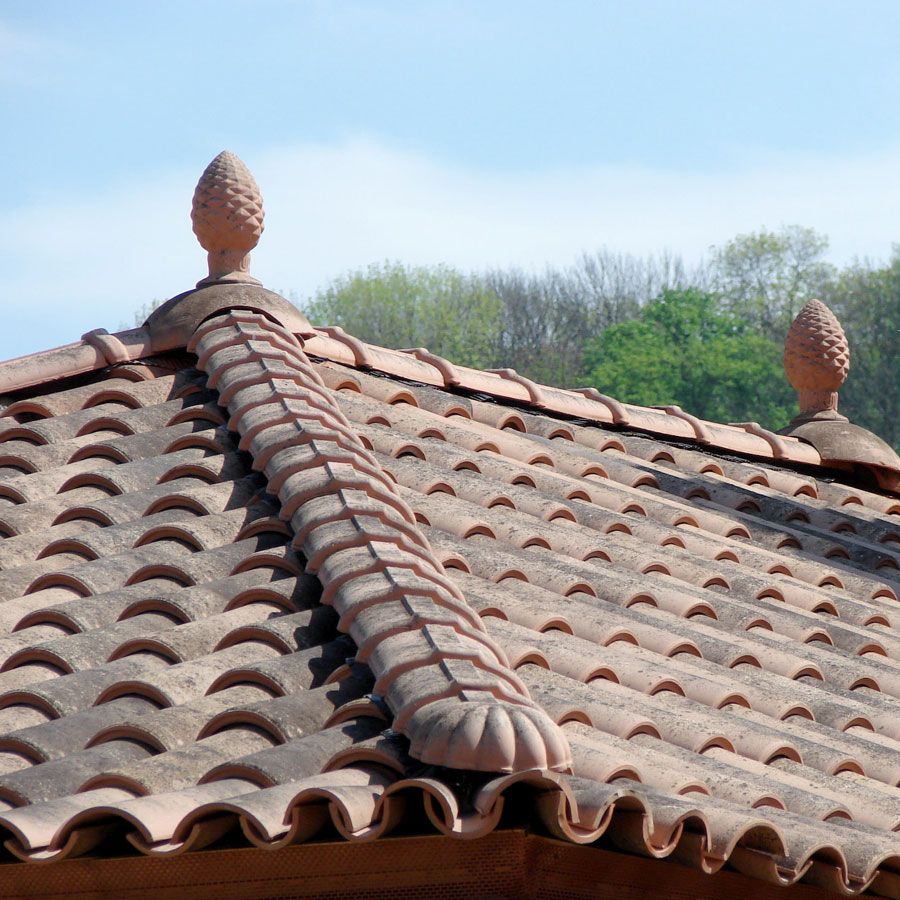

CURVED LUCENTUM ROOF TILE
Traditionally, this 2 pieces tile, also referred to as Mission barrel, has been the most frequently used roof tile in Europe and in Spanish Colonial Buildings in the New World. Today, this tile is used in the construction of new homes, due to the beauty and wide variety of colors available. It is also used to restore beautiful historic roofs that have been deteriorated by natural weathering over time.
-HIGH WATER IMPERMEABILITY
A selection of quality clays together with high temperature cooking/baking grant the tile very low water absorption.
-GREAT VERSATILITY
For both the Renovation / Restoration of Emblematic buildings as for the newer Buildings, the Curve tile offers a high quality finish and fi ne touch.
-COLORS AND TEXTURES
A variety of colors and textures allow accurate imitation of aged tiles with the guarantee of modern tiles.
-HIGHER RESISTANCE
The composition of the clay and its perfect design, allow higher flexion than the standards require.
