Master Modulo and Finishing Module
The Master:
Dimensions: W 25 x H 21.5 x D 27 cm
Weight: 8 kg /18 lbs
The Finishing Module:
Dimensions: W 25 x H 5 x D 27 cm
Weight: 4 kg /9 lbs
Modulo Ethanol Insert M100:
Dimensions: W 100 x H 21.5 x D 27 cm
Weight: 23 kg
Optimal Heat Output: 7.5 kw
Fuel Consumption: 1.2 l/hour
Tank Capacity: 10 l
Estimated burning time: 8 – 10 hours
Angled Inside Modulo MA50 Module:
Dimensions: W 50 x H 21.5 x D 27 cm
Weight: 22 kg
Optimal Heat Output: 5.3 kw
Fuel Consumption: 0.85 l/hour
Tank capacity: 8 l
Estimated burning time: 8 – 10 hours
Easy to design
Being totally modulable, the Modulo line let you design continuous ribbons of fire of very large size by segments of 25 cm.

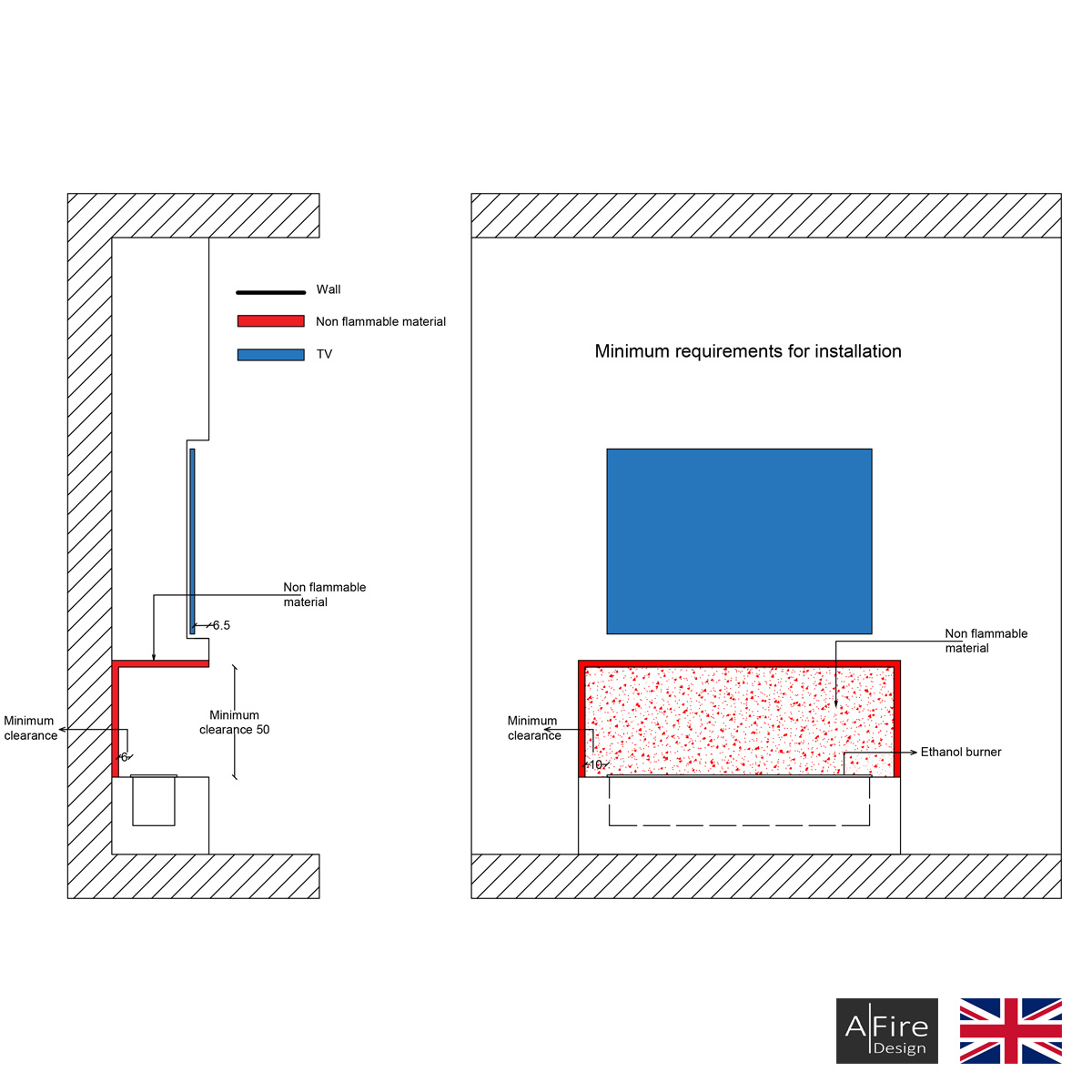

In the decoration project you’re imagining, just plan for room to insert the modules that will make up your ethanol fireplace (installation dimensions available as a PDF upon request). Inside this space, electric power is required in order to connect the Modulos.
That’s it! You can invent a world of fire and design.
Easy to install

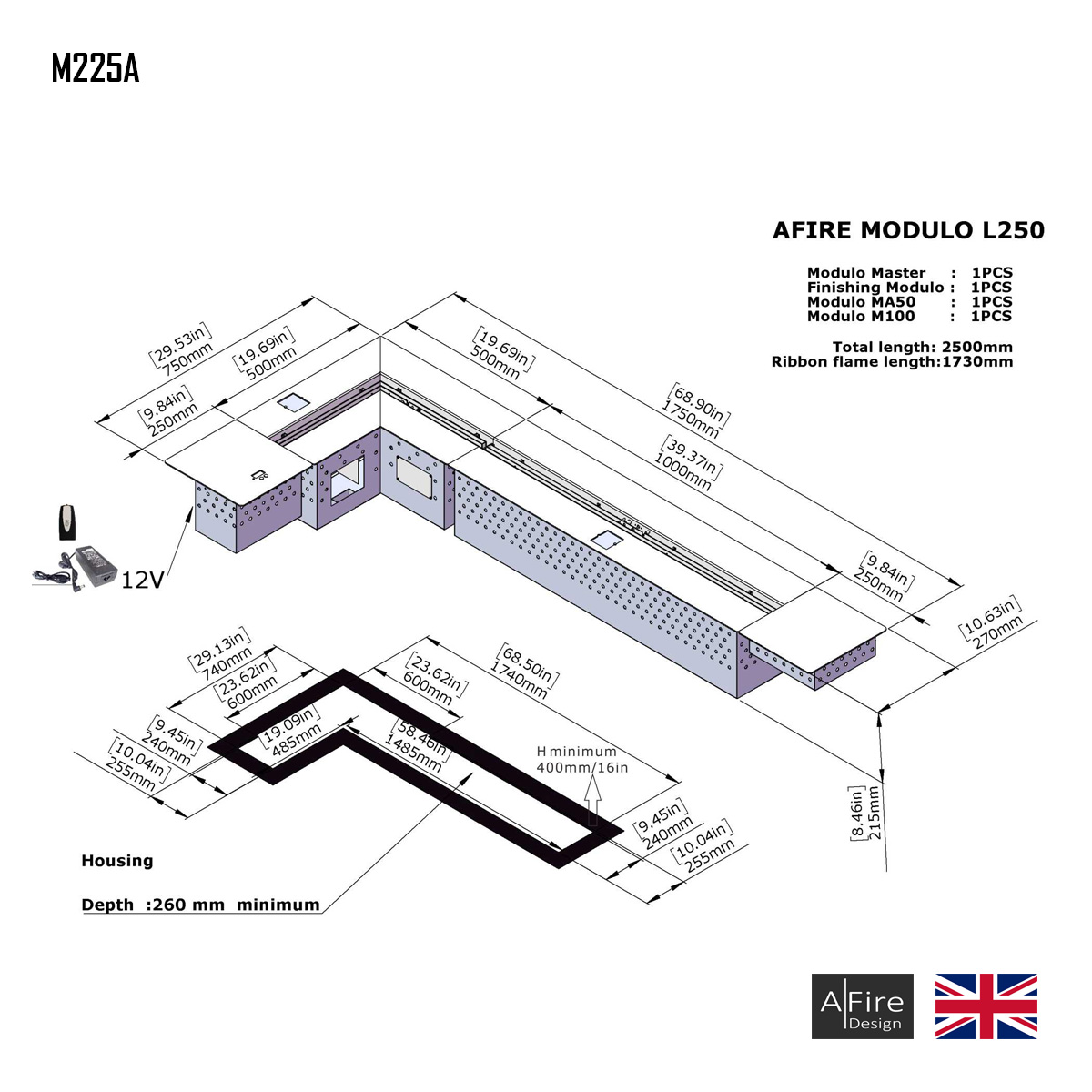

A Modulo fire-space is comprised of a Master , interior modules and finishing piece.
Once the setting is built, you just have to insert the modules one by one inside the space.
All modules are connected to the Master with a single connector and linked to the power supply by an adapter (12 V – 100-200 V; 50-60 Hz) (these connectors are provided and adapted to your country’s power requirements).
The finishing piece is set first (5) then the inside modules (2-3-4) (possible to insert up to 10 modules), and finally the Master (1).
Everything making fire spaces difficult to install has been removed by the designer.
Easy to use and safe
The Modulo feature centralized control.
Simply pressing a button will control all the modules and therefore start or stop the line of fire.
You can control the Modulo either with a remote control, with a button on the device or through distance control (smartphone, Wi-Fi, etc.) using the Master smart connector (potential free dry contact).
The appliance is equipped with an electronic safety system.
It controls all the inserts and stops flames in the event of malfunction or if anomalies and detected by the sensors present in all modules.
